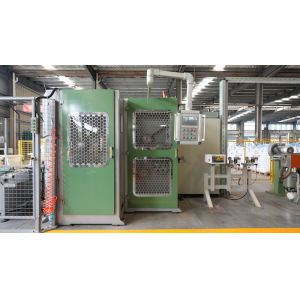

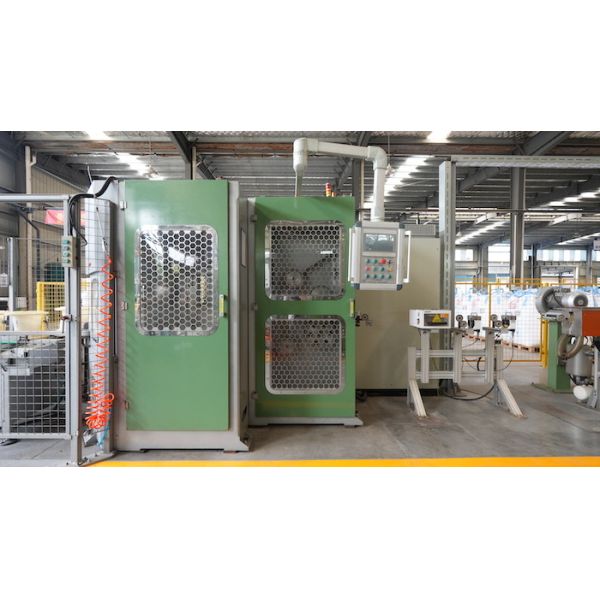

Automotive Wire High Speed Extrusion Production Line 1500m/min
Custom Solutions for Unique Needs
No two production lines are the same. That’s why we offer tailored configurations to meet your specific cable types, speeds, and material requirements.
Easy Maintenance, Long Life
Engineered for durability and ease of maintenance, our machines are built to run smoothly with minimal service interruptions.
High Output, Low Waste
Our precision screw and die technology ensures optimal material usage, reducing scrap and improving your bottom line.
The automated production line is specially used for the manufacturing of wires and cables, which can realize the continuous insulation coating of metal conductors (copper/aluminum). The winding and packaging can be matched with KPS cone-shaped reel fully automatic wire taking-up machine, double-head coiling machine, double-reel semi-automatic wire taking-up machine, etc.
Application
The production line is suitable for single-color, single-color strip, double-color strip, and full-cover extrusion of thermoplastic insulation materials such as PVC, PP, PE, XLPE, and low-smoke halogen-free, meeting the German, Japanese, Korean, Italian and other series of automotive wire insulation extrusion.
Suitable conductor:0.22mm²--6mm²;
Finished outer diameter: φ1.2mm-φ5mm;
Line speed: KPS take-up Max1500m/min;
Double-head coiling machine: Max1000m/min;
Double-reel semi-automatic take-up: Max1000m/min;
Specification
| Screw specification (mm) |
Φ50 |
Φ70 |
Φ80 |
Φ90 |
Φ100 |
Φ120 |
Φ150 |
| Maximum screw speed (rpm) |
120 |
120 |
110 |
90 |
80 |
70 |
60 |
| PVC glue output (kg/h) |
100 |
180 |
280 |
360 |
430 |
500 |
800 |
| PE glue output (kg/h) |
50 |
90 |
140 |
180 |
200 |
280 |
400 |
| PP glue output (kg/h) |
40 |
90 |
110 |
140 |
- |
- |
- |
| Aspect ratio (L/D) |
(24-26):1 |
| Drive power (kWAC) |
22 |
45 |
55 |
75 |
90 |
132 |
160 |
| Barrel temperature control area |
4 |
4 |
5 |
5 |
6 |
7 |
8 |
| Screw specification (mm) |
φ35 |
φ40 |
φ50 |
φ65 |
| Mechanical type |
Reclining/horizontal |
Reclining/horizontal
|
horizontal |
horizontal |
| Maximum screw speed (rpm) |
60/120 |
60/120 |
120 |
110 |
| PVC glue output (kg/h) |
20/30 |
20/35 |
100 |
160 |
| PE glue output (kg/h) |
10/25 |
14/30 |
50 |
75 |
| PP glue output (kg/h) |
14/25 |
16/30 |
40 |
80 |
| Drive power (kW AC) |
5.5/11 |
5.5/15 |
22 |
45 |
| Barrel temperature control area |
3 |
3 |
4 |
4 |
